Industry leader, AEM Performance Electronics, is reaching new levels of performance and function with the release of their latest series of the digital gauges, the X-Series. See what makes this latest release such a revolutionary addition to the performance part market.

See AEM’s Original Press Release Below!

FOR IMMEDIATE RELEASE

AEM Releases Expanded Line of X-Series Digital Gauges!
Smarter, Slimmer Sexier Gauges Feature a Host of Refinements

Hawthorne, CA— Aril 3rd, 2016

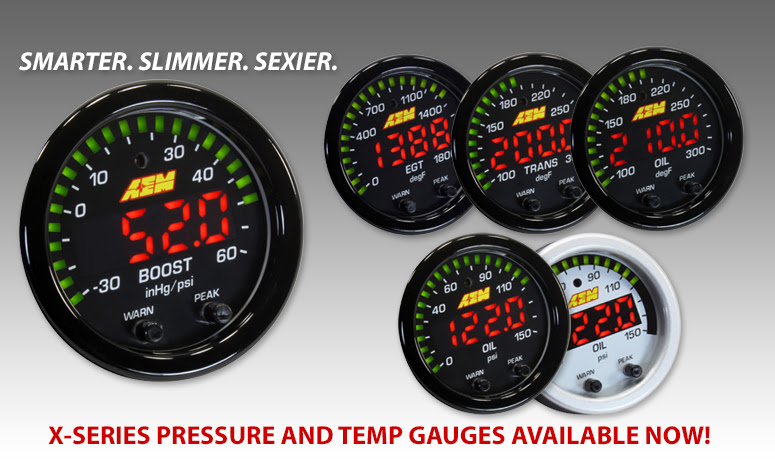

AEM’s new X-Series Digital Gauges combine incredible looks, increased readability and a multitude of new, easy-to-use features! X-Series Digital Display Gauges are available for Boost, EGT, Fuel/Oil Pressure, Oil/Water/Trans Temperature and Volts. These new gauges complement the X-Series Digital Wideband AFR gauge which was released in the winter and is the fastest responding wideband in independent testing.

Visual improvements include a bright three- or four-digit LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED “needle” lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see displayed values at a glance. X-Series Gauges come with a black bezel and faceplate, and optional silver bezel/white faceplate accessory kits are available for each gauge (sold separately).

Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825”, with a cup depth of only 0.200.” This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric display, and user-selectable min/max threshold warnings. The faceplates are reversible for standard or metric. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

Coming in Summer 2016!
AEM will be expanding its X-Series line with an AEMnet X-Series Digital Gauge that reads and displays engine/vehicle parameters transmitted through the AEMnet CAN Bus stream, an OBDII X-Series Digital Gauge that reads and displays OBDII parameters and clears diagnostic trouble codes (DTCs), and a GPS-based X-Series Speedometer in summer 2016. Detailed information on these gauges will be available upon release.

X-Series Digital Display Gauge Features:

  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
  • Programmable standard or metric readout with reversible faceplates
  • Center LED is 87% larger than original AEM gauges
  • 24 green outer LEDs for quick reference to engine parameter
  • Peak/Recall via gauge face buttons
  • User selectable min/max threshold warnings (excl. Volts)
  • Optional silver bezel with white faceplate(s) accessory kits available (sold separately)
  • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
  • 0-5v analog outputs for transmitting data to EMS or Data Logger
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connectors provide secure connection

Part Number X-Series Gauge Description
30-0300 X-Series Wideband AFR Gauge
30-0300-ACC X-Series Wideband AFR Accessory Kit, Silver Bezel & White AFR/Lambda Faceplate
30-0301 X-Series 100psi Oil Pressure Gauge (Also Fuel Pressure w/ Accessory Kit)
30-0301-ACC X-Series 100psi Oil Pressure Gauge Accessory Kit, Silver Bezel. Black Fuel Pressure Faceplate. White Oil & Fuel Pressure Faceplates
30-0302 X-Series 100~300F / 40~150C Temperature Gauge, Black Bezel & Black Water Faceplate (Also Trans & Oil Temp w/ Accessory Kit)
30-0302-ACC X-Series 100~300F / 40~150C Temp Gauge Accessory Kit, Black Transmission & Oil Faceplates. White Water, Transmission & Oil Faceplates
30-0303 X-Series 8~18V Volts Gauge, Black Bezel & Black Faceplate
30-0303-ACC X-Series 8~18V Volts Gauge Accessory Kit, Silver Bezel & White Faceplate
30-0305 X-Series 0~1800F / 0~1000C EGT Gauge, Black Bezel & Black Faceplate
30-0305-ACC X-Series 0~1800F / 0~1000C EGT Gauge Accessory Kit, Silver Bezel & White Faceplate
30-0306 X-Series -30inHg~35psi / -1~2.5bar Boost Pressure Gauge, Black Bezel & Black Faceplate
30-0306-ACC X-Series -30inHg~35psi / -1~2.5bar Boost Pressure Gauge Accessory Kit, Silver Bezel & White Faceplate
30-0307 X-Series 0~150psi / 0~10bar Oil Pressure Gauge, Black Bezel & Black Faceplate
30-0307-ACC X-Series 0~150psi / 0~10bar Oil Pressure Gauge Accessory Kit, Silver Bezel & White Faceplate
30-0308 X-Series -30~60psi / -1~4bar Boost Pressure Gauge, Black Bezel & Black Faceplate
30-0308-ACC X-Series -30~60psi / -1~4bar Boost Pressure Gauge Accessory Kit, Silver Bezel & White Faceplate
30-0309 X-Series 0~15psi Pressure Gauge, Black Bezel & Black Boost/Fuel Faceplate
30-0309-ACC X-Series 0~15psi Pressure Gauge Accessory Kit, Silver Bezel & White Boost/Fuel Faceplate

ABOUT AEM
Advanced Engine Management’s performance electronics are Engineered to Outperform. The company designs, manufactures and assembles engine management systems, wideband air/fuel systems, data loggers, water/methanol injection systems, performance gauges, boost controllers, ignition components, fuel delivery components and adjustable cam gears at its corporate headquarters in Hawthorne, CA.
